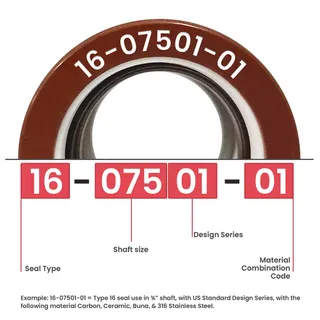

Seal Material Combination Code
Advantage Seal uses a variety of seal face and elastomer materials, depending on our customers’ needs. When selecting the seal’s material, be sure to consider the following characteristics:
Temperature constraints
Type of fluid
Characteristics of the fluid

Please contact Advantage Seal for special material requirements

Seal Assembly	Seal Ring	Mating Ring	Elastomer	Metal	Rotary/Sub Assembly	Seat Assembly
01	Ceramic	Buna	316 SS	01	Carbon	01
02	Ceramic	Viton	316 SS	02	Carbon	02
03	Ceramic	EP	316 SS	03	Carbon	03
04	Ceramic	Neoprene	316 SS	04	Carbon	04
05	Ceramic	EPDM	316 SS	05	Carbon	05
06	Ceramic	Teflon	316 SS	06	Carbon	06
07	Ceramic	Teflon Encapsulated Viton O-ring	316 SS	07	Carbon	07
08	Graphite Loaded SiC	EP	316 SS	03	Carbon	18
09	Graphite Loaded SiC	Neoprene	316 SS	04	Carbon	19
10	Sintered SiC	Viton	316 SS	02	Carbon	57
11	Tungsten	Buna	316 SS	11	Carbon	26
12	Tungsten	Viton	316 SS	12	Carbon	27
13	Tungsten	EP	316 SS	13	Carbon	28
14	Tungsten	Neoprene	316 SS	14	Carbon	29
15	Sintered SiC	EP	316 SS	03	Carbon	58
16	Graphite Loaded SiC	Buna	316 SS	16	Graphite Loaded SiC	16
17	Graphite Loaded SiC	Viton	316 SS	17	Graphite Loaded SiC	17
18	Graphite Loaded SiC	EP	316 SS	18	Graphite Loaded SiC	18
19	Graphite Loaded SiC	Neoprene	316 SS	19	Graphite Loaded SiC	19
20	Sintered SiC	Neoprene	316 SS	04	Carbon	59
21	Ni-Resist	Buna	316 SS		Carbon	21
22	Ni-Resist	Viton	316 SS		Carbon	22
23	Ni-Resist	EP	316 SS		Carbon	23
24	Ni-Resist	Neoprene	316 SS		Carbon	24
25	Boron Silicon	Buna	316 SS	01	Carbon	71
26	Tungsten	Buna	316 SS	26	Tungsten	26
27	Tungsten	Viton	316 SS	27	Tungsten	27
28	Tungsten	EP	316 SS	28	Tungsten	28
29	Tungsten	Neoprene	316 SS	29	Tungsten	29
30	Boron Silicon	Viton	316 SS	02	Carbon	72
31	Tungsten	Buna	316 SS	16	Graphite Loaded SiC	26
32	Tungsten	Viton	316 SS	17	Graphite Loaded SiC	27
33	Tungsten	EP	316 SS	18	Graphite Loaded SiC	28
34	Tungsten	Neoprene	316 SS	19	Graphite Loaded SiC	29
35	Boron Silicon	EP	316 SS	03	Carbon	73
36	Reaction Bonded - Sic	Buna	316 SS	01	Carbon	46
37	Reaction Bonded - Sic	Viton	316 SS	02	Carbon	47
38	Reaction Bonded - Sic	EP	316 SS	03	Carbon	48
39	Reaction Bonded - Sic	Neoprene	316 SS	04	Carbon	49
41	Tungsten	Buna	316 SS	46	Reaction Bonded - Sic	26
42	Tungsten	Viton	316 SS	47	Reaction Bonded - Sic	27
43	Tungsten	EP	316 SS	48	Reaction Bonded - Sic	28
44	Tungsten	Neoprene	316 SS	49	Reaction Bonded - Sic	29
45	Reaction Bonded - Sic	Aflas	316SS	45	Reaction Bonded - Sic	86
46	Reaction Bonded - Sic	Buna	316 SS	46	Reaction Bonded - Sic	46
47	Reaction Bonded - Sic	Viton	316 SS	47	Reaction Bonded - Sic	47
48	Reaction Bonded - Sic	EP	316 SS	48	Reaction Bonded - Sic	48
49	Reaction Bonded - Sic	Neoprene	316 SS	49	Reaction Bonded - Sic	49
51	Graphite Loaded SiC	Buna	316 SS	51	Ceramic	16
52	Graphite Loaded SiC	Viton	316 SS	52	Ceramic	17
53	Graphite Loaded SiC	EP	316 SS	53	Ceramic	18
56	Sintered SiC	Buna	316 SS	56	Sintered SiC	56
57	Sintered SiC	Viton	316 SS	57	Sintered SiC	57
58	Sintered SiC	EP	316 SS	58	Sintered SiC	58
59	Sintered SiC	Neoprene	316 SS	59	Sintered SiC	59
60	Reaction Bonded - Sic	SG	304SS	60	Carbon	60
61	Ceramic	HBNR	304 S3	61	Carbon	61
64	Reaction Bonded - Sic	HBNR	304 S3	61	Carbon	66
65	Ceramic	Buna			Phenolic
66	Reaction Bonded - Sic	HBNR	316 SS	66	Reaction Bonded - Sic	66
67	Ceramic	Viton	316SS	52	Ceramic	02
68	Graphite Loaded SiC	HBNR	316SS	68	Graphite Loaded SiC	68
69	SiCPC	HBNR	316SS	69	SiCPC	69
70	Tungsten	HBNR	316 SS	70	Tungsten	70
71	Boron Silicon	Buna	316 SS	71	Boron Silicon	71
72	Boron Silicon	Viton	316 SS	72	Boron Silicon	72
73	Boron Silicon	EP	316 SS	73	Boron Silicon	73
74	Tungsten	Neoprene	316SS	74	Bronze	29
75	Graphite Loaded RB	Buna	316SS	51	Ceramic	46
76	Ceramic	HBNR	316 SS	76	Carbon	76
77	Silicon Carbide	Viton	316SS	77	Bronze	17
78	Chromium Oxide	Viton	316 SS	82	Carbon - Antimony	78
79	Sintered SiC	Teflon	316 SS	79	Sintered SiC	79
80	Graphite Loaded RB	Viton	316SS	52	Ceramic	47
81	Ceramic	Teflon	316SS	02	Carbon	81
82	Silicon	Viton	316SS	82	Carbon - Antimony	17
83	Tungsten	Aflas	316 SS	83	Carbon - Antimony	83
84	Graphite Loaded SiC	Aflas	316 SS	86	Carbon	87
85	Graphite Loaded RB	EP	316 SS	53	Ceramic	48
86	Reaction Bonded - Sic	Aflas		86	Cabon	86
87	Graphite Loaded SiC	Aflas	316SS	87	Graphite Loaded SiC	87
88	RB or Loaded - Sic	Teflon	316SS	88	Carbon	88
89	Reaction Bonded - Sic	Teflon	316SS	89	Reaction Bonded - Sic	89
92	440C S.S.	Viton	304S3	92	Bronze	92
95	Graphite Loaded SiC	Kalrez/Chemrez/Simriz	316SS	95	Graphite Loaded SiC	95
96	Graphite Loaded SiC	Kalrez/Chemrez/Simriz	316SS	99	Carbon	96
97	Sintered SiC	Aflas	316SS	97	Sintered SiC	97
99	Ceramic	Kalrez/Chemrez/Simriz	316SS	99	Carbon - Antimony	99
100	Sintered SiC	Kalrez/Chemrez/Simriz	316SS	100	Sintered SiC	100
101	Ceramic	Buna	276HC	101	Carbon	101
102	Ceramic	Viton	276HC	102	Carbon	102
103	Ceramic	EP	276HC	103	Carbon	103
104	Ceramic	Neoprene	276HC	104	Carbon	104
106	Graphite Loaded SiC	Buna	276HC	106	Carbon	106
107	Graphite Loaded SiC	Viton	276HC	107	Carbon	107
108	Graphite Loaded SiC	EP	276HC	108	Carbon	108
109	Graphite Loaded SiC	Neoprene	276HC	109	Carbon	109
120	Graphite Loaded SiC	Teflon/ Teflon Encapsulated Viton O-ring	276HC	120	Graphite Loaded SiC	820
195	Graphite Loaded SiC	Kalrez	276HC	195	Graphite Loaded SiC	95
196	Graphite Loaded SiC	Kalrez	276HC	196	Carbon	95
199	Ceramic	Kalrez	276HC	196	Carbon	99
383	Tungsten	Viton	AM350	383	Carbon - Antimony	383
601	Ceramic 85% Alumina	Buna	304S3	601	Carbon - Hot Pressed	601
602	Ceramic 85% Alumina	Viton	304S3	602	Carbon - Hot Pressed	602
603	Ceramic 85% Alumina	EP	304S3	603	Carbon - Hot Pressed	603
604	Ceramic 85% Alumina	Neoprene	304S3	604	Carbon - Hot Pressed	604
636	Reaction Bonded - Sic	Buna	304S3	601	Carbon - Hot Pressed	46
661	Ceramic 99.5% Alumina	HBNR	316SS	01	Carbon	661
645	Ceramic 99.5% Alumina	Buna	316SS	01	Carbon	645
701	Ceramic	Buna	316SS	701	Teflon Glass-Filled	01
702	Ceramic	Viton	316SS	702	Teflon Glass-Filled	02
703	Ceramic	EP	316SS	703	Teflon Glass-Filled	03
704	Ceramic	Neoprene	316SS	704	Teflon Glass-Filled	04
706	Graphite Loaded SiC	Buna	316SS	701	Teflon Glass-Filled	16
707	Graphite Loaded SiC	Viton	316SS	702	Teflon Glass-Filled	17
708	Graphite Loaded SiC	EPDM	316SS	703	Teflon Glass-Filled	18
709	Graphite Loaded SiC	Neoprene	316SS	704	Teflon Glass-Filled	19
802	Ceramic	Teflon/ Teflon Encapsulated Viton O-ring	316 SS	88	Carbon	802
817	Graphite Loaded SiC	Viton/ Teflon Encapsulated Viton O-ring	316SS	817	Graphite Loaded SiC	817
820	Graphite Loaded SiC	Teflon/ Teflon Encapsulated Viton O-ring	316SS	820	Graphite Loaded SiC	820
827	Tungsten	Viton/ Teflon Encapsulated Viton O-ring	316 SS	827	Tungsten	827
847	Reaction Bonded - Sic	Viton/ Teflon Encapsulated Viton O-ring	316SS	847	Reaction Bonded - Sic	847
883	Tungsten	Fluororubber 67% Fluorine	316SS	883	Carbon - Antimony	883
886	Reaction Bonded - Sic	Fluororubber 67% Fluorine	316SS	883	Carbon - Antimony	886
912	Tungsten	Viton		912	Bronze (Phosphor)	27
